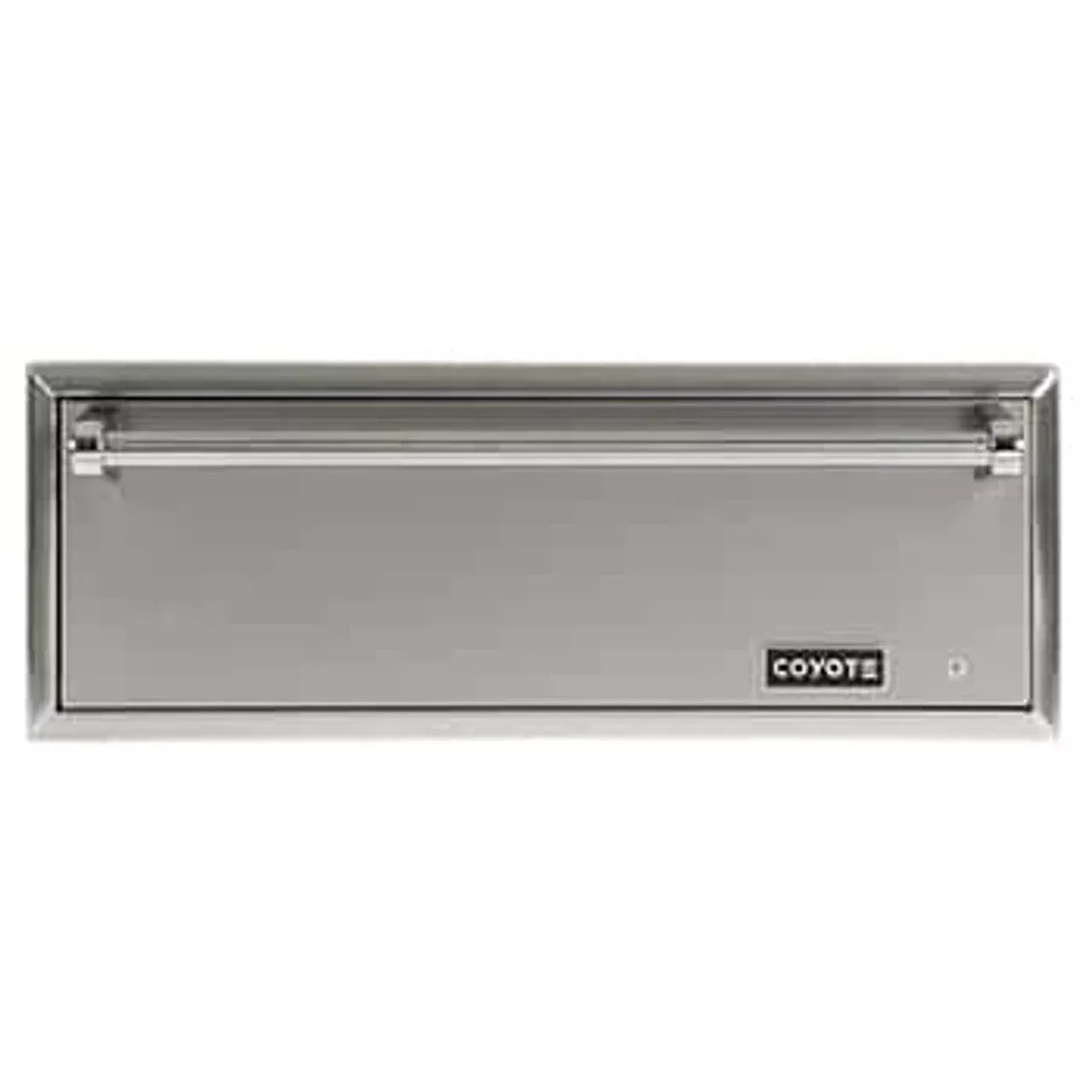

Keep prepared food warm while the rest of the meal comes together. The Coyote CWD is a previous-generation 30-inch built-in warming drawer with 304-grade stainless-steel construction and an electric heating system rated at a maximum 400 watts / 3.3 amps.
Model-generation note: This listing is for legacy CWD, not current C3-WD. Confirm the exact model and availability before ordering; current-generation handle, control, imagery, and dimensional details should not be assumed.
- Built-in warming drawer for holding prepared food before serving
- 304-grade stainless-steel construction
- External on/off indicator with concealed controls
- Variable electric heating system rated at 400 watts / 3.3 amps maximum
- Outdoor-kitchen installation format
- Model / SKU: CWD
- Overall dimensions (H × W × D): 10-3/4 × 29-1/2 × 26-3/4 inches
- Required cutout (H × W × D): 9-1/2 × 28-1/4 × 23-1/2 inches
- Electrical: Separate 120V / 15A-minimum, 2-wire-with-ground circuit; hardwired; 400W / 3.3A maximum; 60 Hz
- Included: One warming drawer; field wiring and support materials not included
Pre-installation check: Verify the rating plate, hardwire requirements, circuit protection, and installation instructions on the physical unit before wiring.
- Installation and grounding must be completed by a qualified technician under applicable electrical codes.
- Outdoor installation requires GFI protection and a readily accessible disconnect, breaker, or receptacle as applicable.
- Do not use the warming drawer to heat a room or store flammable materials.
- Have the product on site and confirm cutout, support, and electrical routing before construction.
